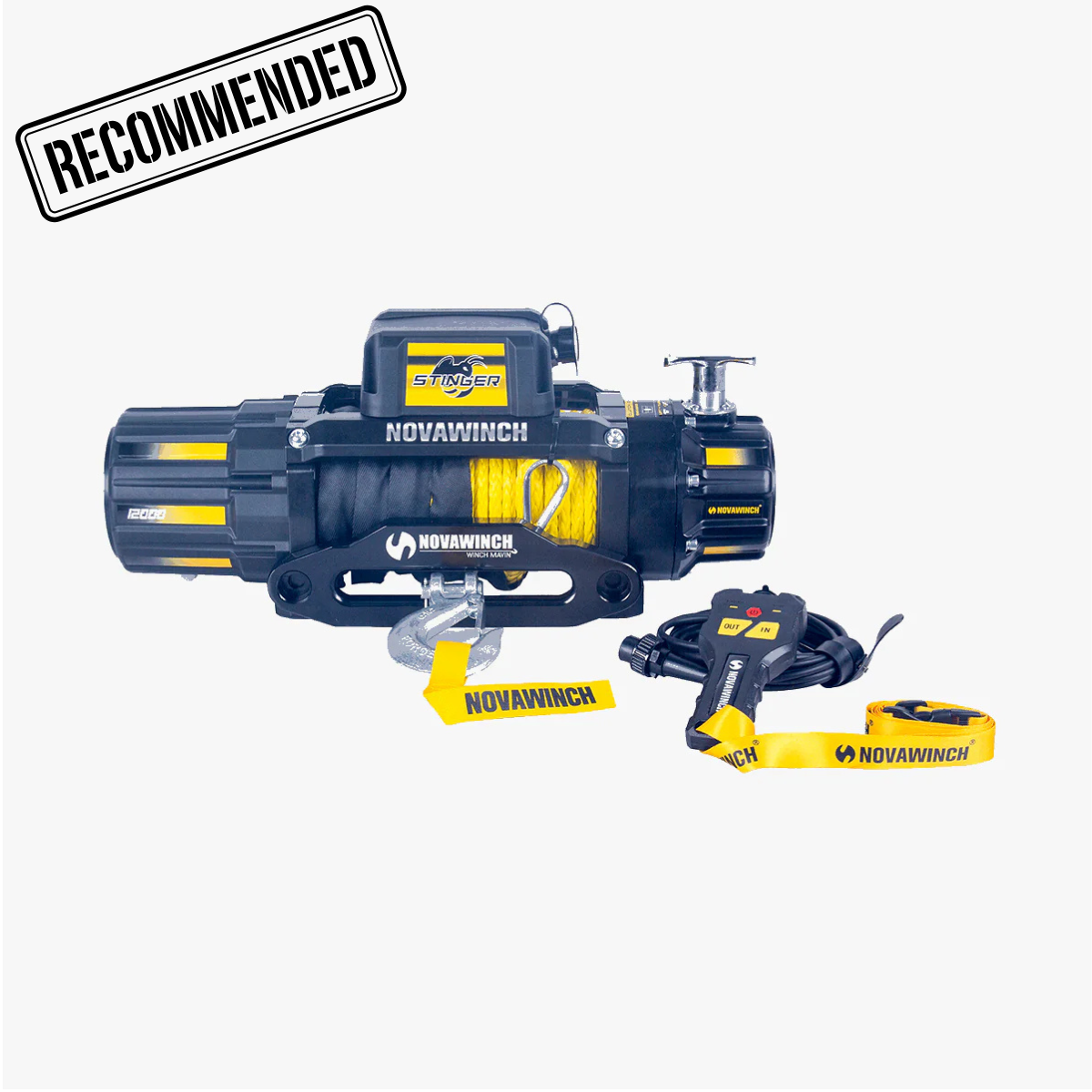

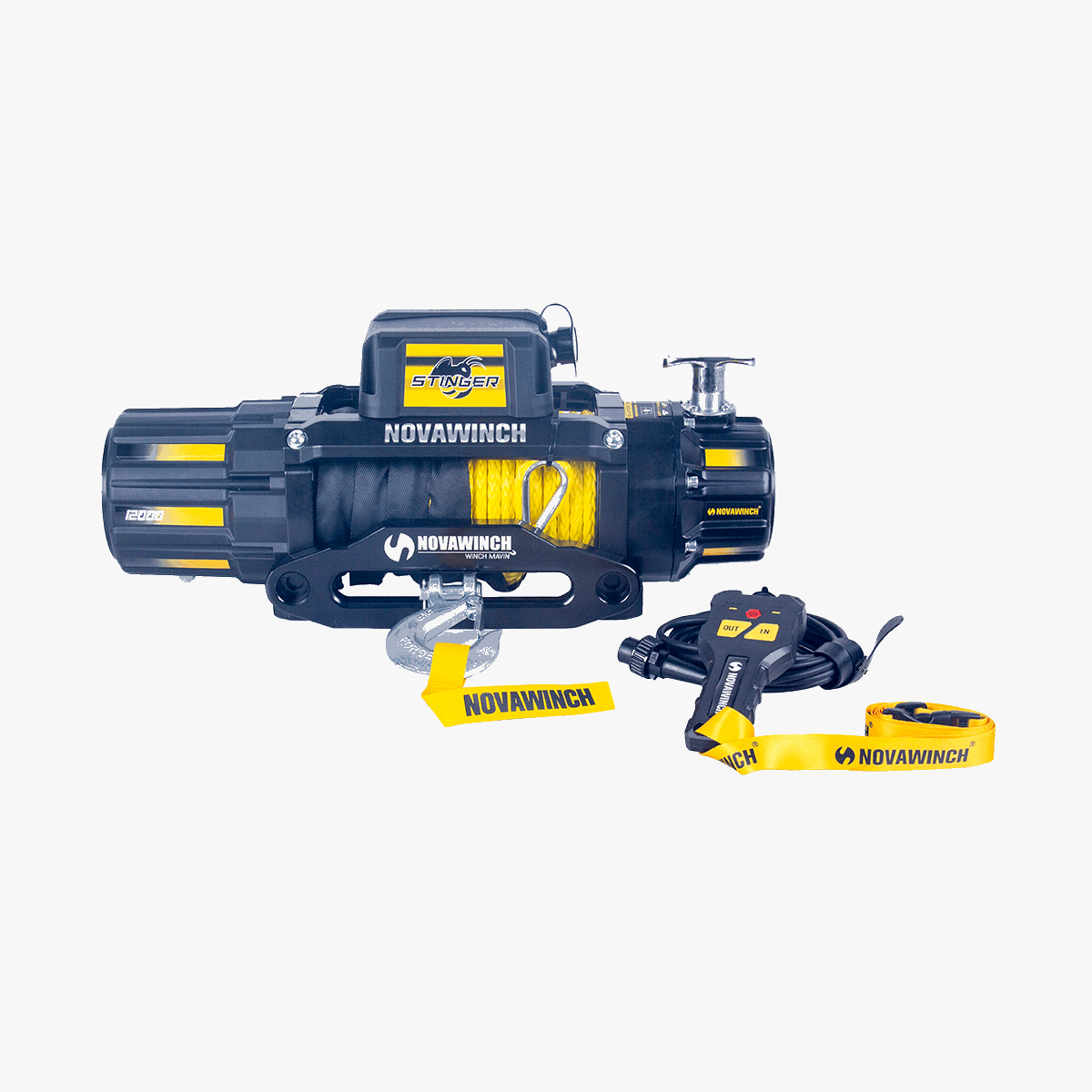

STINGER 12000 12V 4x4 Winch (5.4T) - 26m Synthetic Rope & DUO Remote

SKU:
{sku}
£440.00
(£0.00 inc. VAT)
was
£0.00
Save £0.00
This product isn’t available to order online. Call or email our team.
This product is made to order
In stock
Not in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
Amber
Amber
Amber
Out of Stock
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Buy now, pay later options available at checkout
Visa Logo
Mastercard Logo
Google Pay Logo
Paypal Logo
Klarna Logo

Product Description

The Novawinch STINGER 12000 is a 12V electric winch for suitably equipped 4x4s, pickups, trailers and recovery vehicles. It delivers 12,000lb (5,443kg) of rated line pull on the first rope layer and comes with 26m × 9.2mm synthetic rope and an aluminium hawse fairlead.

Key features

  • 12,000lb (5,443kg) first-layer line pull for vehicle recovery and loading.
  • 12V, 5.5kW series-wound motor with three-stage planetary gearing and a 196:1 ratio.
  • 26m × 9.2mm synthetic rope with an aluminium hawse fairlead.
  • DUO remote control for wireless operation or wired use with the supplied plug-in cable.
  • Mechanical automatic brake to hold tension when winching stops.
  • IP68-rated protection against dust and water ingress.

Synthetic rope for easier handling

Synthetic rope is lighter and easier to handle than steel wire rope, particularly when pulling out the line during an off-road recovery. The supplied aluminium hawse fairlead provides a smooth guide for the rope. Inspect both before use and protect the rope from sharp edges, abrasion and heat.

One controller, two ways to operate

The included DUO controller operates wirelessly when you need to stand away from the winch. For wired operation, connect the separate supplied 3.9m cable to the same controller and plug it into the winch. This gives you a choice of control methods without needing a second handheld remote.

Check the installation

The winch requires a suitable 12V electrical system and a secure mounting arrangement. Its mounting bolt pattern is 254 × 114.3mm. The 12,000lb figure is pulling force on the first rope layer; available pull reduces as rope builds up on the drum. Follow the supplied instructions for installation, electrical protection and operating periods.

What's in the box?

  • STINGER 12000 12V electric winch.
  • 26m × 9.2mm UHMWPE synthetic winch rope.
  • Aluminium hawse fairlead.
  • DUO wireless remote with included 3.9m cable for wired operation.
  • Winch hook.
  • Mounting Plate
  • Mounting Hardware

Explore more electric and hydraulic winches at Rydam, or compare this model with the STINGER 12000 with steel wire rope. Contact Rydam if you need help choosing the right configuration for your vehicle. Free UK delivery is available on Rydam orders.

Specifications

Performance by Layer
Layer Rated Line Pull Synthetic Rope Capacity
1 12,000 lb (5,443 kg) 17.7 ft (5.4 m)
2 9,563 lb (4,342 kg) 40.4 ft (12.3 m)
3 7,949 lb (3,609 kg) 66.9 ft (20.4 m)
4 6,801 lb (3,087 kg) 85.3 ft (26.0 m)
Line Speed & Motor Current (First Layer)
Line Pull Line Speed Motor Current (12V)
0 lb (0 kg) 32.8 fpm (10.0 m/min) 80 A
12,000 lb (5,443 kg) 3.6 fpm (1.1 m/min) 420 A
Technical Specifications
Rated Line Pull (Single Line, First Layer) 12,000 lb (5,443 kg / approximately 5.4 tonnes)
Motor Specifications 12V DC series-wound motor: 7.3 hp / 5.5 kW
Gear Train 3-stage planetary gearing, 196:1 ratio
Clutch Rotating ring-gear mechanism with 90° turn lever
Braking Action Mechanical, automatic load holding
Ingress Protection IP68
Drum Size 2.48" diameter x 8.8" length (63mm x 224mm)
Synthetic Rope Dimensions 3/8" x 85.3' (9.2mm x 26m) UHMWPE synthetic winch rope
Included Fairlead Aluminium hawse fairlead
Control System DUO wireless controller with separate 3.9m plug-in cable for wired operation; wireless range up to approximately 50ft (15m)
Electrical Protection Circuit breaker included
Winch Dimensions L: 21.25" x W: 6.49" x H: 9.05" (540mm x 165mm x 230mm)
Mounting Bolt Pattern 10" x 4.5" (254mm x 114.3mm)
Net Weight 87.8 lb (40 kg)
