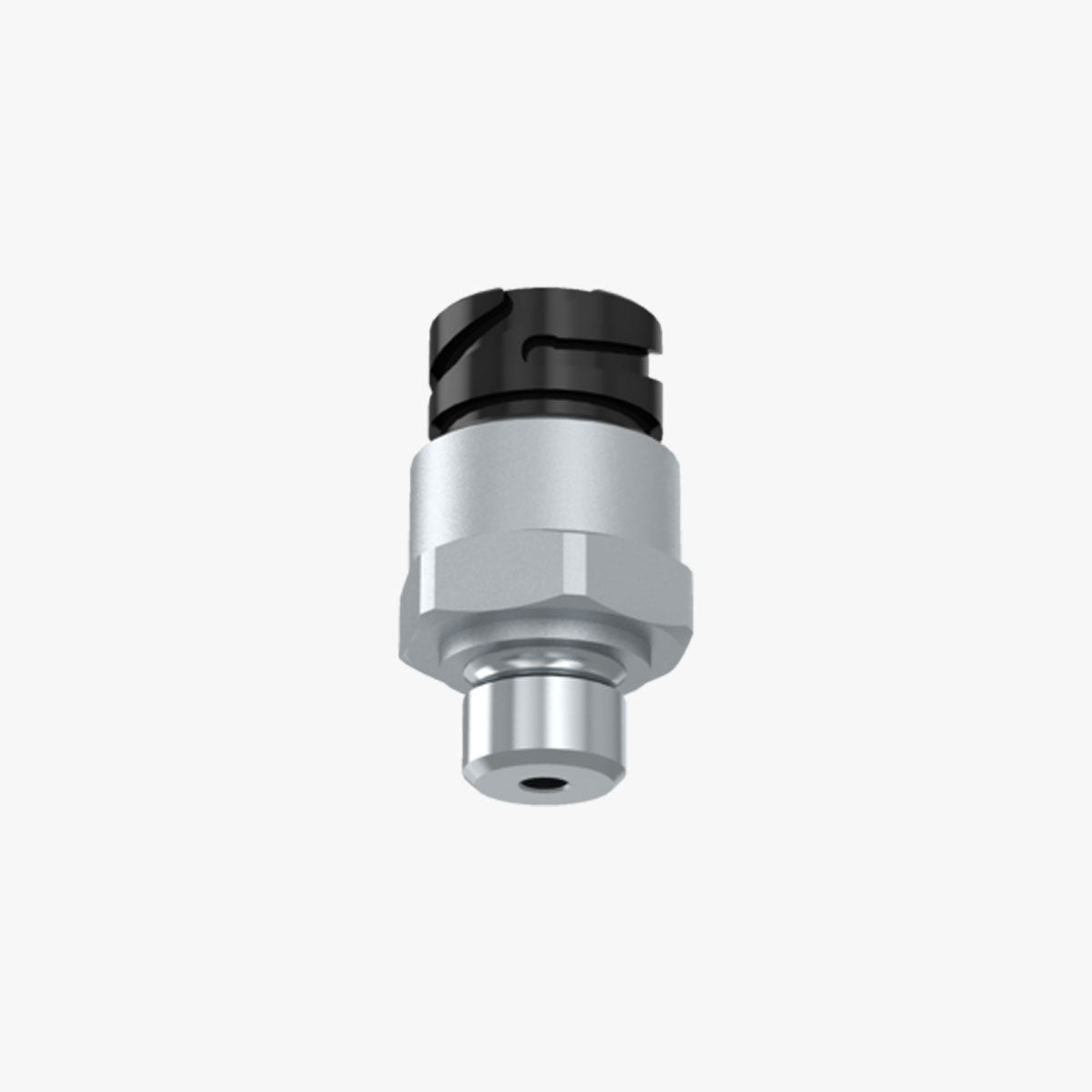

Pressure Sensor for EBS Relay Modulator Valve - 4410441080

Specifications

Manufacturer: Wabco
Calculated Volume [dm³]: 0.05115
Electrical connection: Bayonet DIN 72585 A1-3.1-Sn/K2
Hysteresis: 0.2% FS
Linearity: 0.3% FS
Max. operating pressure: 16.0 bar
Measuring range: 0 to 10.85 bar
Port thread 0: M16 x 1.5
Port threads: M16 x 1.5
Predominance: 0.5 V
Protection class: IP6K7/IP6K9K
Rated current: 15 A
Sealing: 8114010574
Sensitivity: 0.40 V/bar
Technical specification: OE specification
Temperature range: -40°C to +80°C
Type: Piezo-Resistive
Version: Without sealing
Voltage: 24 V
Size [mm x mm x mm]: 55 x 31 x 30
Manufacturer Number: 4410441080

Wabco
Pressure Sensor for EBS Relay Modulator Valve - 4410441080

Wabco

Pressure Sensor for EBS Relay Modulator Valve - 4410441080

SKU:
{sku}
|
£194.70
(£0.00 inc. VAT)

Was

|
You save 20%
Not available online
Get in touch to order
Please Note: This product is made to order.
0 in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
parts@rydam.com
+44 0113 288 7766
Amber
Amber
Amber
Out of stock
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Ensure accurate and responsive braking in your heavy-duty vehicle with this Wabco Pressure Sensor (4410441080) for EBS Relay Modulator Valves. This OE replacement brake pressure sensor provides precise, real-time data to your Electronic Braking System (EBS), optimising braking performance and enhancing safety.

Specifications

Manufacturer: Wabco
Calculated Volume [dm³]: 0.05115
Electrical connection: Bayonet DIN 72585 A1-3.1-Sn/K2
Hysteresis: 0.2% FS
Linearity: 0.3% FS
Max. operating pressure: 16.0 bar
Measuring range: 0 to 10.85 bar
Port thread 0: M16 x 1.5
Port threads: M16 x 1.5
Predominance: 0.5 V
Protection class: IP6K7/IP6K9K
Rated current: 15 A
Sealing: 8114010574
Sensitivity: 0.40 V/bar
Technical specification: OE specification
Temperature range: -40°C to +80°C
Type: Piezo-Resistive
Version: Without sealing
Voltage: 24 V
Size [mm x mm x mm]: 55 x 31 x 30
Manufacturer Number: 4410441080
