Specifications

Size [mm] Weight [kg] WLL [T] D L B R E d H M
7/8 0.72 2 24 158.5 130 120.5 62 12 19 26
10 1.25 3.2 31.5 199 152.5 153.2 73 15 25 31
13 2.32 5.3 44 241.5 186 184 90 19 33 38.5
16 3.45 8 49 279 218 216 105 22 37 42
18/20 6.42 12.5 60 330 252 247 114 26 46 57

Duke
Grade 80 Lifting Reeving Link

Duke

Grade 80 Lifting Reeving Link

SKU:
{sku}
|
$6.30
(£0.00 inc. VAT)

Was

|
You save 20%
Not available online
Get in touch to order
Please Note: This product is made to order.
0 in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
Amber
Amber
Amber
Out of stock
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

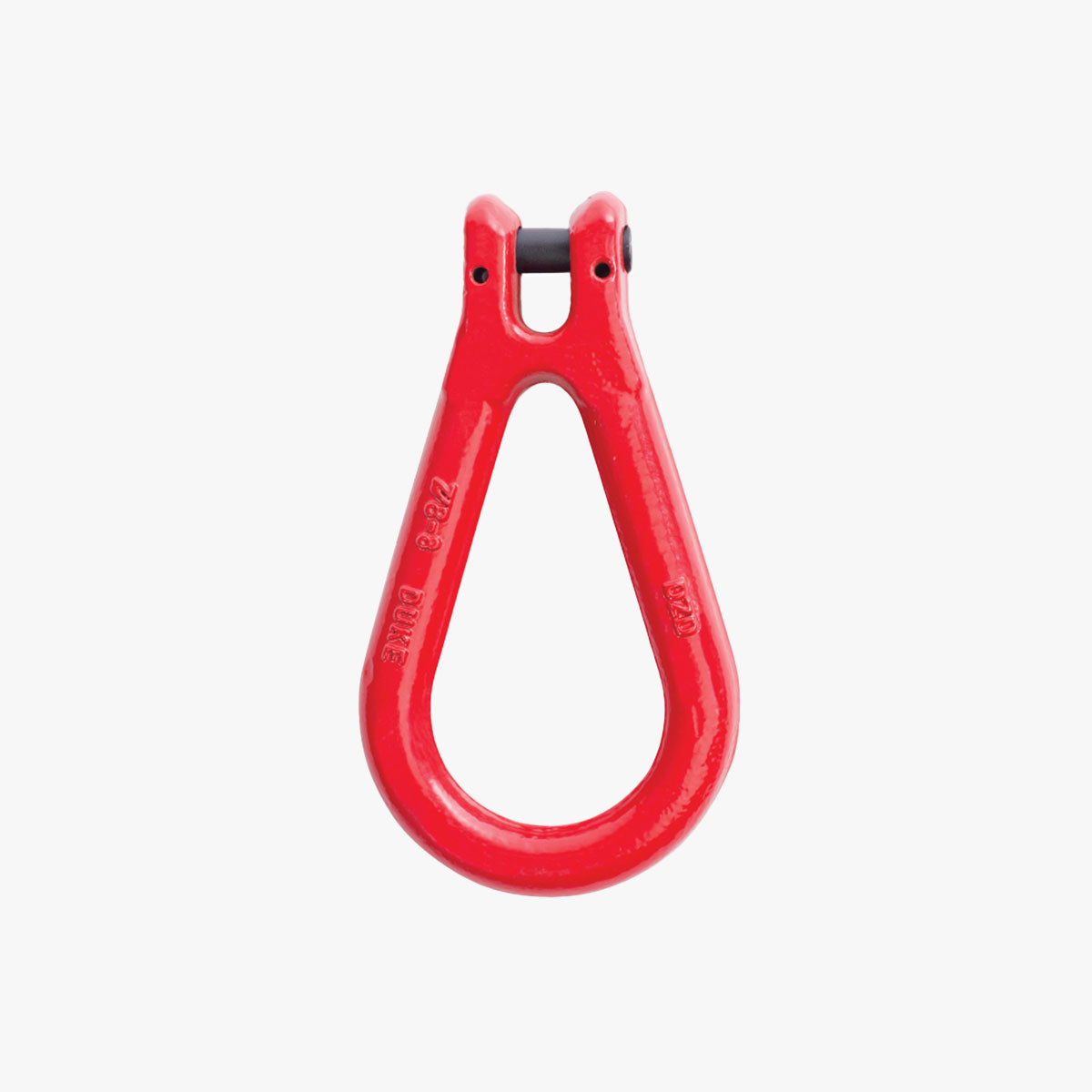

Providing robust and compliant connections for your lifting needs, the Grade 80 Lifting Reeving Link are available for use with 7mm, 8mm, 10mm, 13mm, and 16mm diameter lifting chain. Manufactured from super alloy steel, these links meet the stringent requirements of EN 1677-1. With a Working Load Limit (WLL) range of 2 Tonne to 8 Tonne (Never Exceed WLL), these links are fatigue rated to 1.5x WLL for 20,000 cycles and proof tested to 2.5x WLL. To ensure long-lasting performance and safety, each link undergoes 100% Magnaflux crack detection, and all load pins are individually inspected and tested. Finished with a protective red paint, these connecting links offer a 4:1 safety factor for added peace of mind.

Specifications

Size [mm] Weight [kg] WLL [T] D L B R E d H M
7/8 0.72 2 24 158.5 130 120.5 62 12 19 26
10 1.25 3.2 31.5 199 152.5 153.2 73 15 25 31
13 2.32 5.3 44 241.5 186 184 90 19 33 38.5
16 3.45 8 49 279 218 216 105 22 37 42
18/20 6.42 12.5 60 330 252 247 114 26 46 57
