Specifications

Size [mm] Weight [kg] WLL [T] M D E H B L
06 0.3 1.12 20.5 9 18.5 20 68 109
7/8 0.48 2 25 11 22 27 84 133.5
10 1.05 3.15 34 14 28 33 102.5 167.5
13 1.75 5.3 42.5 17.5 35 40 128.5 207.5
16 3.2 8 52 22 43 48 156.5 253
18/20 5.3 12.5 62 26 51.5 56 187 300

Duke
Grade 80 Lifting Eye Sling Hook with Safety Catch

Duke

Grade 80 Lifting Eye Sling Hook with Safety Catch

SKU:
{sku}
|
£6.60
(£0.00 inc. VAT)

Was

|
You save 20%
Not available online
Get in touch to order
Please Note: This product is made to order.
0 in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
Amber
Amber
Amber
Out of stock
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

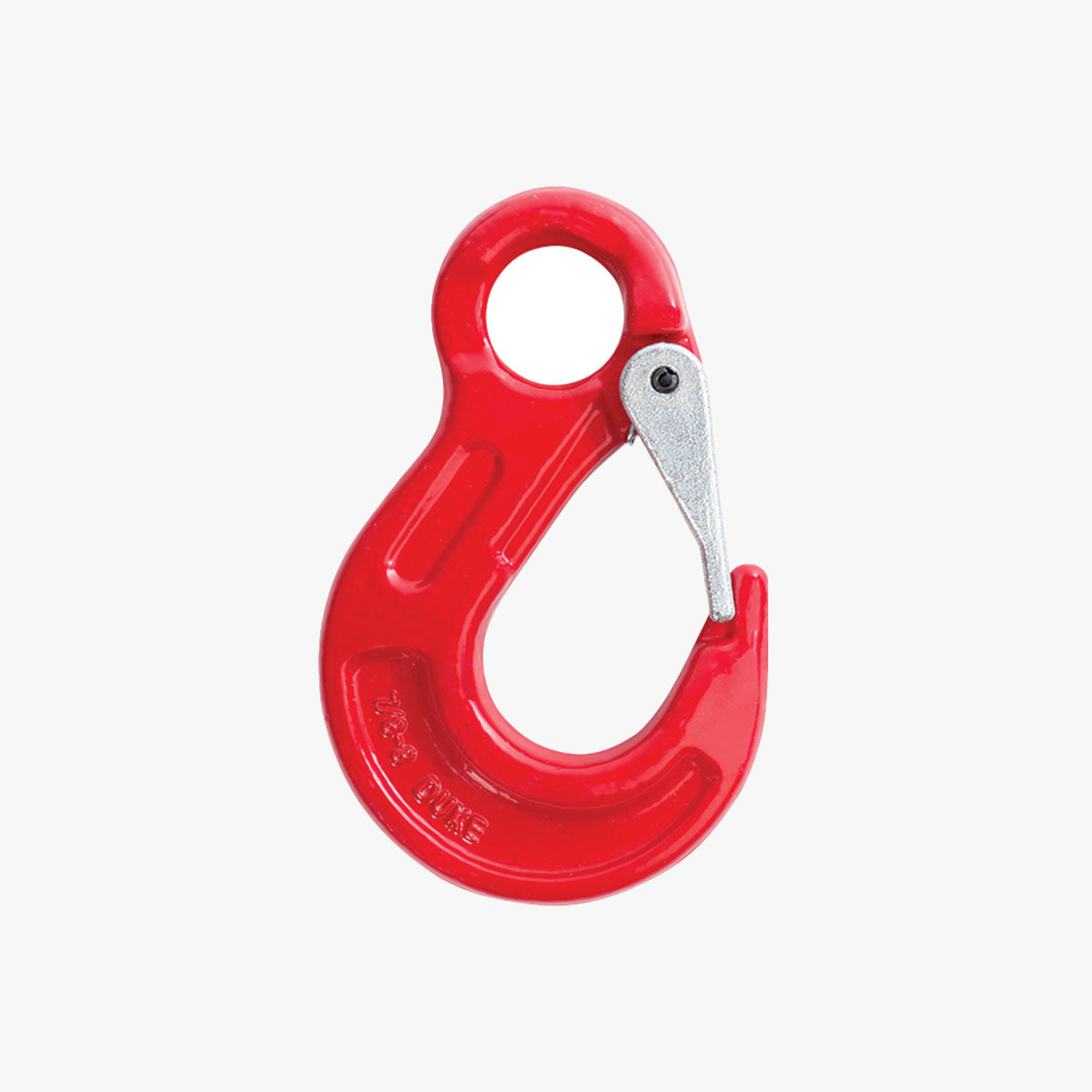

Elevate your lifting performance with these Grade 80 Lifting Eye Sling Hook, meticulously engineered for use with 7mm, 8mm, 10mm, 13mm, 16mm, 18mm, and 20mm diameter lifting chains. Constructed from high tensile Grade 80 alloy steel, these hooks adhere to European Standard EN 1677-2, ensuring consistent quality and reliability. With a Working Load Limit (WLL) range from 2 Tonne up to 12.5 Tonne (Never Exceed WLL), these hooks are designed for a variety of heavy-duty applications.

Each lifting hook undergoes rigorous testing, including a fatigue rating at 1.5x WLL (20,000 cycles) and a proof test to 2.5x WLL. Each hook undergoes 100% Magnaflux crack detection, guaranteeing exceptional safety and structural integrity. Featuring a distinctive red painted finish and built with a 4:1 safety factor.

Specifications

Size [mm] Weight [kg] WLL [T] M D E H B L
06 0.3 1.12 20.5 9 18.5 20 68 109
7/8 0.48 2 25 11 22 27 84 133.5
10 1.05 3.15 34 14 28 33 102.5 167.5
13 1.75 5.3 42.5 17.5 35 40 128.5 207.5
16 3.2 8 52 22 43 48 156.5 253
18/20 5.3 12.5 62 26 51.5 56 187 300
