Specifications

Size [mm] Weight [kg] WLL [T] E D H R L
6 0.21 1.12 8 14.5 18 46.8 73
7/8 0.35 2 10.8 18 21.5 52.5 93
10 0.65 3.15 13 20.5 29 79.8 122
13 1.34 5.3 16.5 26 42.8 99.7 158
16 2.1 8 19 30.5 44.5 106.5 169
18/20 4 12.8 24 37.5 56 140.2 219
22 6.36 16 28 44 68 165 259
26 10.6 21.2 30 49 77 197 306
32 19.4 31.5 38 57 95 226 361

Duke

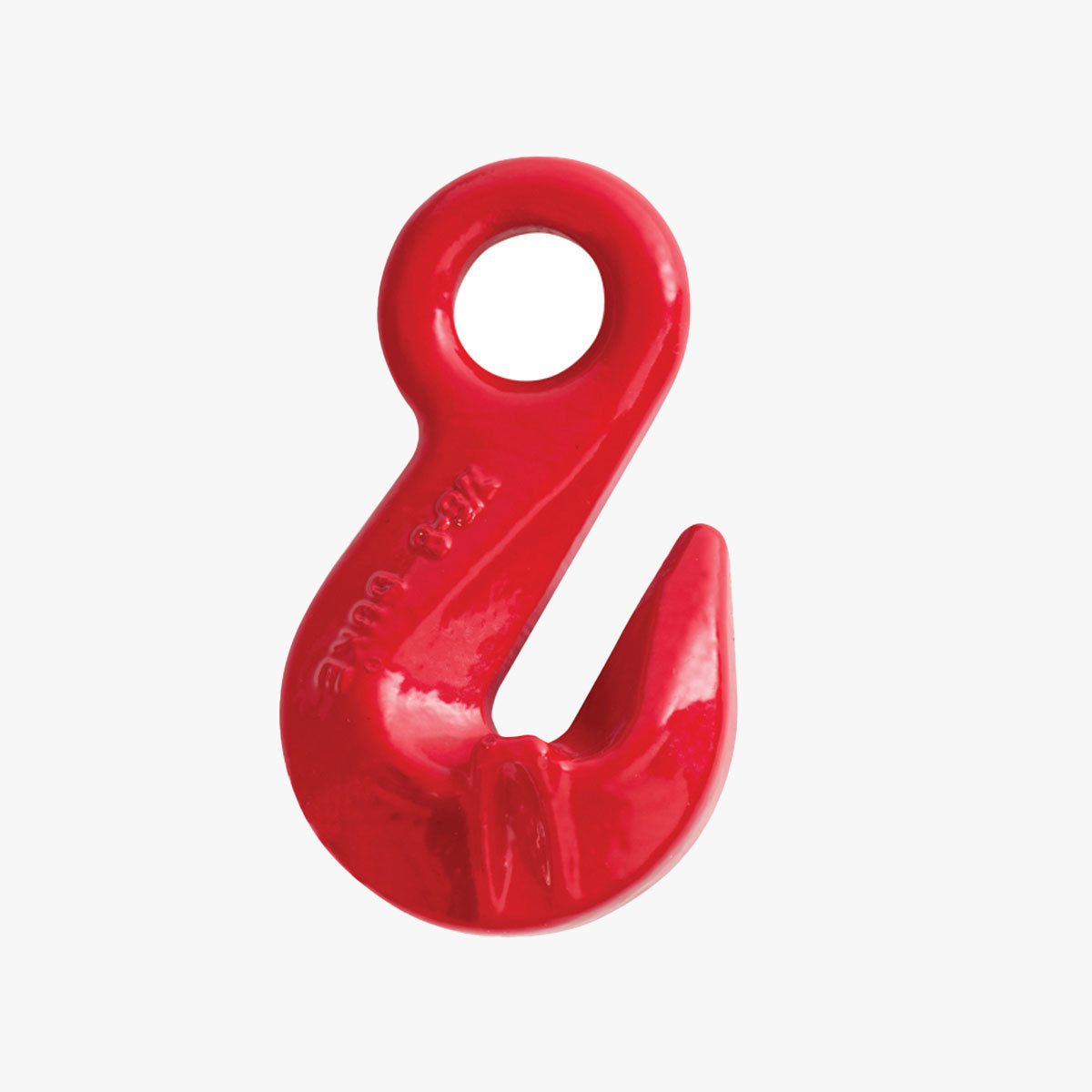

Grade 80 Lifting Eye Shortening Grab Hook

Duke

Grade 80 Lifting Eye Shortening Grab Hook

SKU:
{sku}
|
£3.10
(£0.00 inc. VAT)

Was

|
You save 20%
Not available online
Get in touch to order
Please Note: This product is made to order.
0 in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
Amber
Amber
Amber
Out of stock
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Maximise the safety and efficiency of your lifting operations with our Grade 80 Lifting Eye Shortening Grab Hook, designed for seamless integration with 7mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm, and 32mm diameter lifting chains. Crafted from high tensile Grade 80 alloy steel, these hooks conform to European Standard EN 1677-1, ensuring reliability and consistent performance.

Offering a versatile Working Load Limit (WLL) range from 2 Tonne up to 31.5 Tonne (Never Exceed WLL), these Eye Grab Hooks are rigorously tested to meet the demands of heavy-duty lifting. They feature a fatigue rating at 1.5x WLL (20,000 cycles) and undergo proof testing to 2.5x WLL. 100% Magnaflux crack detection guarantees exceptional structural integrity. Finished with a highly visible red paint and engineered with a 4:1 safety factor.

Specifications

Size [mm] Weight [kg] WLL [T] E D H R L
6 0.21 1.12 8 14.5 18 46.8 73
7/8 0.35 2 10.8 18 21.5 52.5 93
10 0.65 3.15 13 20.5 29 79.8 122
13 1.34 5.3 16.5 26 42.8 99.7 158
16 2.1 8 19 30.5 44.5 106.5 169
18/20 4 12.8 24 37.5 56 140.2 219
22 6.36 16 28 44 68 165 259
26 10.6 21.2 30 49 77 197 306
32 19.4 31.5 38 57 95 226 361
