Grade 100 Master Link for 1-2 Leg Chain Slings

Specifications

Size [mm] For 1 Leg For 2 Leg Weight [kg] WLL [T] A B D S
6/5 6 5 0.14 1.4 80 50 10
7/6 7 6 0.34 2.3 110 60 13 7
8/7 8 7 0.53 3.5 110 60 16 7
10/8 10 8 0.86 5 135 75 18 8
13/10 13 10 1.6 7.6 160 90 23 11
16/13 16 13 2.46 10 180 100 27 13
20-19/16 20/19 16 4.14 14 200 110 33 17
22/20 22 20/19 6.22 25.1 260 140 36 19
26/22 26 22 12.85 30.8 340 180 45
32/26 32 26 16.22 40 350 190 50
/32 32 27 60 400 200 60

Duke
Grade 100 Master Link for 1-2 Leg Chain Slings

Duke

Grade 100 Master Link for 1-2 Leg Chain Slings

SKU:
{sku}
|
£10.89
(£0.00 inc. VAT)

Was

|
You save 20%
Not available online
Get in touch to order
Please Note: This product is made to order.
0 in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
parts@rydam.com
+44 0113 288 7766
Amber
Amber
Amber
Out of stock
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

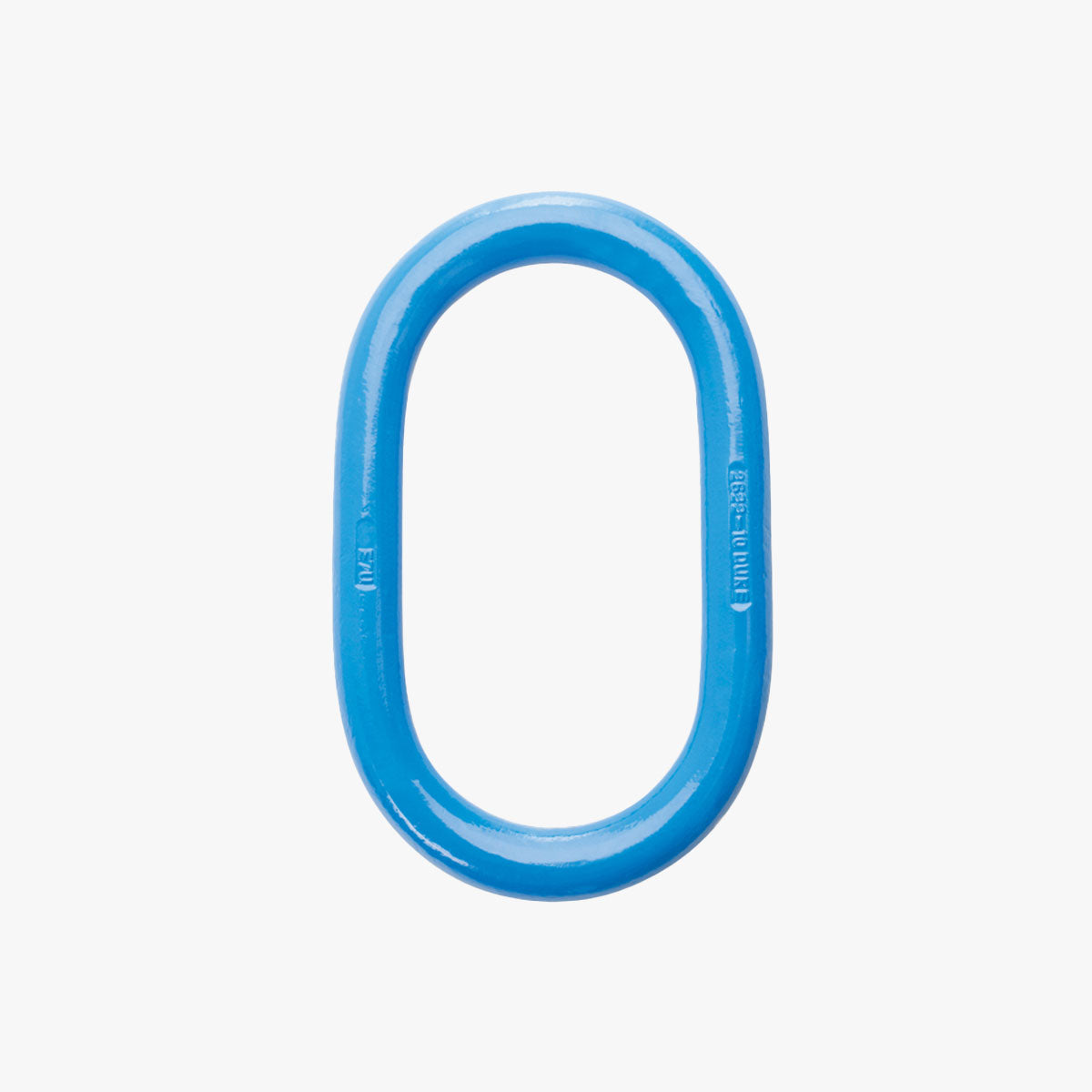

This Grade 100 Master Link provides a superior connection for your 1-leg or 2-leg chain slings. Constructed from high tensile Grade 100 alloy steel and conforming to European Standard EN 1677-4, this master link is designed to meet the demands of heavy lifting.

Utilising a Grade 100 super alloy steel construction, this link offers 25% higher working load limits than Grade 80 equivalents. Fatigue rated to 1.5 times the Working Load Limit (WLL) for 20,000 cycles and proof tested to 2.5 times the WLL, each master link undergoes 100% Magnaflux crack detection for guaranteed reliability.

Finished with a distinctive blue painted finish. Suitable for 1 or 2 leg Grade 100 chain slings. Safety factor: 4:1.

Specifications

Size [mm] For 1 Leg For 2 Leg Weight [kg] WLL [T] A B D S
6/5 6 5 0.14 1.4 80 50 10
7/6 7 6 0.34 2.3 110 60 13 7
8/7 8 7 0.53 3.5 110 60 16 7
10/8 10 8 0.86 5 135 75 18 8
13/10 13 10 1.6 7.6 160 90 23 11
16/13 16 13 2.46 10 180 100 27 13
20-19/16 20/19 16 4.14 14 200 110 33 17
22/20 22 20/19 6.22 25.1 260 140 36 19
26/22 26 22 12.85 30.8 340 180 45
32/26 32 26 16.22 40 350 190 50
/32 32 27 60 400 200 60
