Duke

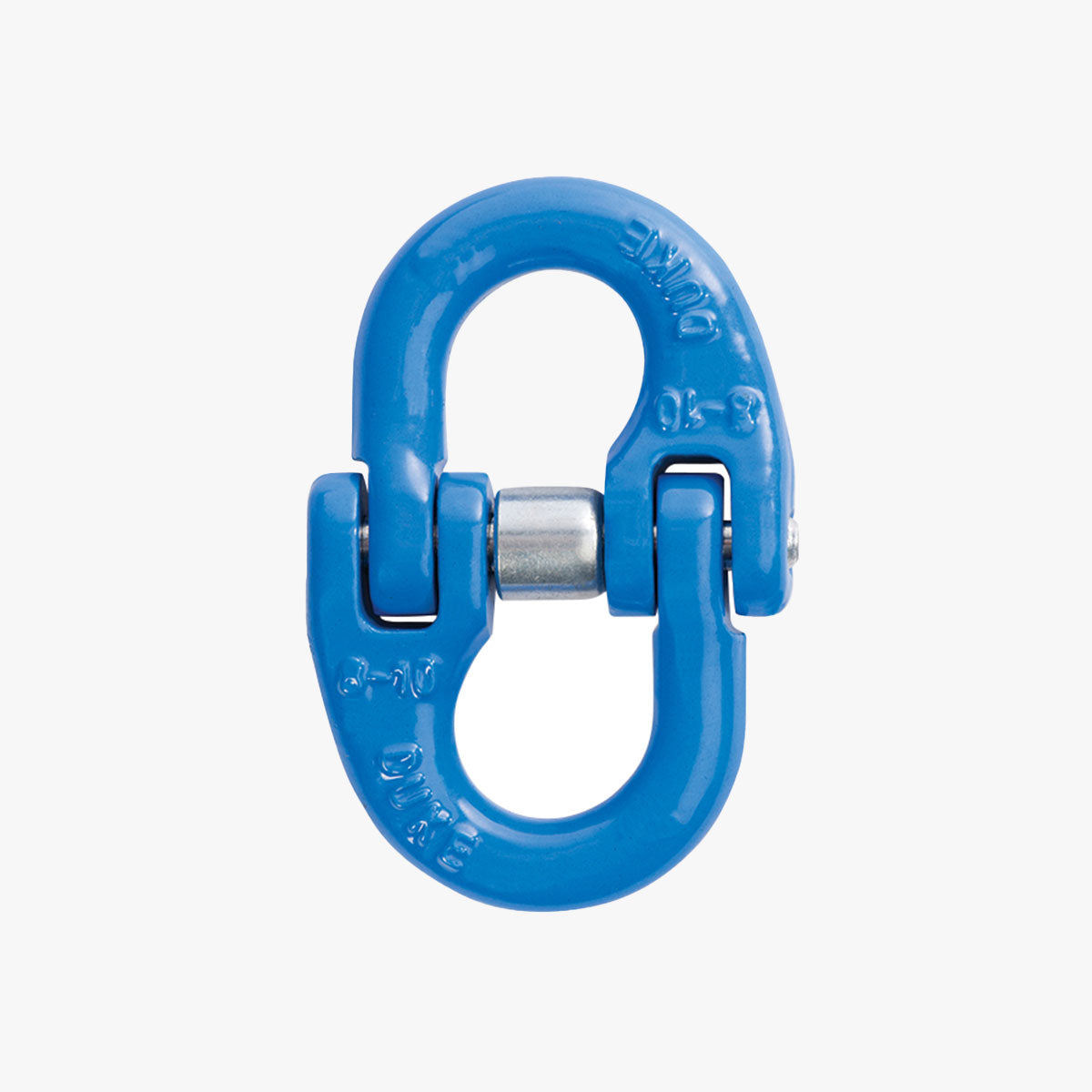

Grade 100 Lifting Connecting Link

SKU:
{sku}
£4.43
(£0.00 inc. VAT)
was
£0.00
Save £0.00
This product isn’t available to order online. Call or email our team.
This product is made to order
In stock
Not in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
Amber
Amber
Amber
Out of Stock
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Buy now, pay later options available at checkout
Visa Logo
Mastercard Logo
Google Pay Logo
Paypal Logo
Klarna Logo

Product Description

Built for the most demanding lifting applications, our Grade 100 Connecting Links provide a secure and compliant connection for chain diameters from 6mm to 32mm. These heavy-duty links are manufactured from super alloy steel to meet the stringent requirements of EN 1677-1. Boasting a wide Working Load Limit (WLL) range from 1.4 Tonne up to 39.3 Tonne (Never Exceed WLL) and utilising a WLL + 25% higher grade material, these links offer unparalleled strength. Fatigue rated to 1.5x WLL for 20,000 cycles and proof tested to 2.5x WLL, each link undergoes 100% Magnaflux crack detection, and all load pins are individually inspected and tested. The durable blue painted finish enhances visibility. Boasts a 4:1 safety factor.

Specifications

Size [mm] Weight [kg] WLL [T] A B E M L
6 0.12 1.4 8.5 32.5 20 44 55
8 0.27 2.5 10.5 42 24 60 73.5
10 0.44 4 12.5 48.5 31 70 90
13 0.89 6.7 16 60 38.5 90 109
16 1.69 10 19 75.5 51 112 141.5
