MAX 4 Axle Curtainside Machinery Carrier

Specifications

Weights (technical value 80 km/h)
Item Value
King pin load 18,000 kg
Axle load 32,960 kg
Gross weight 50,960 kg
Tare weight (±3%) 10,643 kg
Payload 40,317 kg
Dimensions
Item Value
Fifth wheel height (loaded) 1,150 mm
Gooseneck length 3,800 mm
Turning circle (reversing) 2,100 mm
Loading platform length 9,300 mm
Height-adjustable superstructure (loaded) 3,960 mm
Loading deck & superstructure
Item Details
Lashing rings (loading platform) 5 pairs hinged outwards (LC 5,000 daN), 3 pairs hinged outwards (LC 10,000 daN), 1 pair front in firm part (LC 10,000 daN)
Deck Hardwood cover 48 mm above axles, chequer plate
Spare wheel 1 x 205/65 R17.5 (±70 kg)
Landing gears Galvanised, rear under loading platform
Superstructure Front headboard galvanised steel, height-adjustable ~400 mm; EDSCHA roof sliding forwards; 3 pairs sliding stakes; rear corner stakes hydraulically extendable 750 mm L/R; sliding roof with high-swinging portal beam; sliding tarpaulin 700 mm reserve

Faymonville
MAX 4 Axle Curtainside Machinery Carrier

Faymonville

MAX 4 Axle Curtainside Machinery Carrier

SKU:
{sku}
|
$0.00
(£0.00 inc. VAT)

Was

|
You save 20%
Get in touch to order
Please Note: This product is made to order.
0 in stock
Not in stock
Tech Sheet
Outline Drawing
Manual
12 Month Warranty
Learn more
parts@rydam.com
+44 0113 288 7766
Amber
Amber
Amber
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

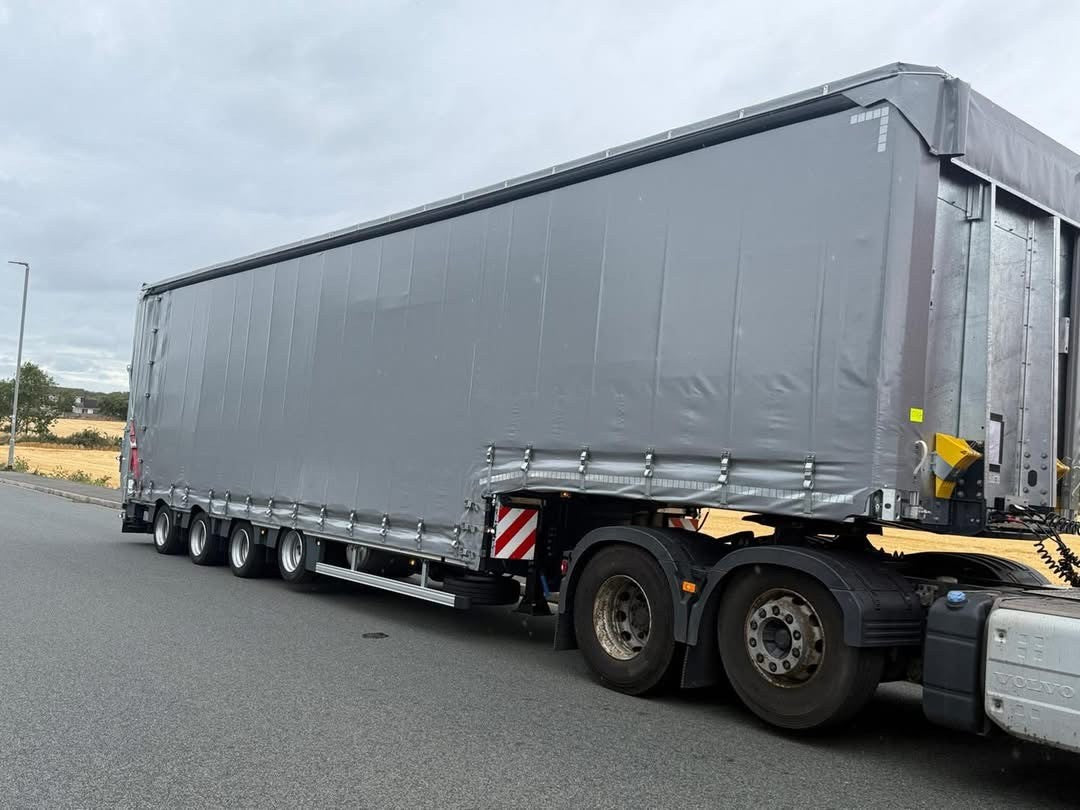

Faymonville MAX 4 Axle Curtainside Machinery Carrier

FAYMONVILLE MAX 4 Axle Curtainside Machinery Carrier complete with hydraulically widening curtain, sliding and liftable roof. Ideal for machine transport and heavy plant.

Weights (80 km/h): King pin load 18,000 kg, axle load 32,960 kg, gross weight 50,960 kg. Tare weight +3% 10,643 kg, payload 40,317 kg.

Dimensions: Fifth wheel height loaded 1,150 mm, gooseneck length 3,800 mm, turning circle reversing 2,100 mm, loading platform length 9,300 mm. Height-adjustable superstructure 3,960 mm (loaded). Front headboard height-adjustable by approx. 400 mm. EDSCHA roof sliding forwards; rear corner stakes hydraulically extendable 750 mm left/right. Sliding tarpaulin with 700 mm reserve.

Loading deck: lashing rings (5 pairs LC 5,000 daN, 3 pairs LC 10,000 daN, 1 pair front LC 10,000 daN), hardwood cover 48 mm above axles (chequer plate), galvanised landing gears, beacon light holder. Accessories include manual on USB stick and cable for electric-hydraulic pump/winch (35 mm², 3.5 m, max 250 A).

Specifications

Weights (technical value 80 km/h)
Item Value
King pin load 18,000 kg
Axle load 32,960 kg
Gross weight 50,960 kg
Tare weight (±3%) 10,643 kg
Payload 40,317 kg
Dimensions
Item Value
Fifth wheel height (loaded) 1,150 mm
Gooseneck length 3,800 mm
Turning circle (reversing) 2,100 mm
Loading platform length 9,300 mm
Height-adjustable superstructure (loaded) 3,960 mm
Loading deck & superstructure
Item Details
Lashing rings (loading platform) 5 pairs hinged outwards (LC 5,000 daN), 3 pairs hinged outwards (LC 10,000 daN), 1 pair front in firm part (LC 10,000 daN)
Deck Hardwood cover 48 mm above axles, chequer plate
Spare wheel 1 x 205/65 R17.5 (±70 kg)
Landing gears Galvanised, rear under loading platform
Superstructure Front headboard galvanised steel, height-adjustable ~400 mm; EDSCHA roof sliding forwards; 3 pairs sliding stakes; rear corner stakes hydraulically extendable 750 mm L/R; sliding roof with high-swinging portal beam; sliding tarpaulin 700 mm reserve
